Ourdoor crane
5000kg Capacity Overhead Traveling Crane for sale Stock Ref: SOLD
outdoor crane

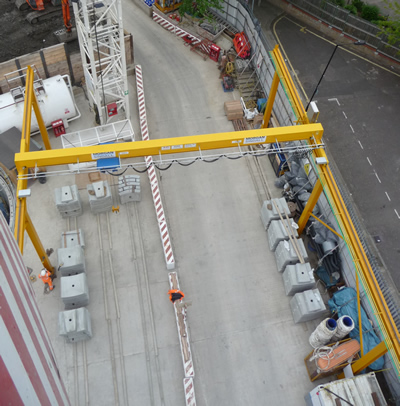

aerial photograph of a gantry crane

Only 12 months old, this crane is practically new and in excellent condition, this is a great opportunity to own a nearly new high spec gantry crane at the right price.

Single Girder Overhead Traveling Crane

  • Capacity 5000kg (5t) SWL
  • Crane span 13000mm (13m)
  • Lifting height 6100mm (6.1m)
  • Hoisting speeds at 5.0/0.83 m/min
  • Traversing speeds at 20.0/5.0 m/min
  • Traveling (LT) speeds at 32.0/8.0 m/min
  • Mains supply voltage at 415V 3ph 50Hz
  • Misia Rope Hoist fitted type MX
  • LT panel is Stainless Steel for outdoor use

The crane is also available with a Free Standing Gantry (FSG) system as detailed below.

SOLD, we want your used crane to sell next.

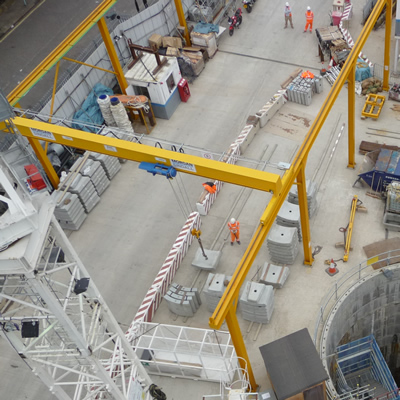

overhead crane photo from the air

23000mm (23m) of Free Standing Gantry (FSG) with 4 columns per side as shown in the picture opposite.

6440mm (6.4m) to the top of the rail giving a drawn up hook height of 6100mm (6.1m).

Below you can download drawings of the crane and gantry in PDF format giving all the dimensional details.

Crane Dimensions in PDF -

Gantry Dimensions in PDF -

If you are interested in this crane please call us on 01527 854600 quoting reference number AB5TMS
