Former glass handling crane, removed from a warehouse in Brentford. Manufacturer is Street Cranes capacity: 5000kg.

For sale stored in the Midlands, removed from a site in London. The crane beam has the end carriages mounted in shear (on the side of the beam not underneath.)

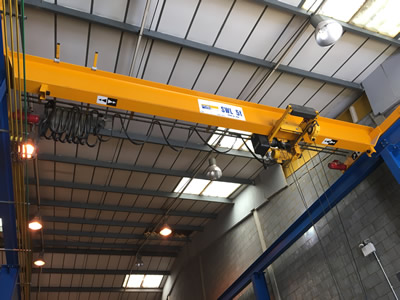

Crane capacity: 5 tonnes SWL, c/w support steelwork.	AG349; Crane capacity: 5 tonnes SWL, c/w support steelwork.     Crane span 7190mm. Floor to rail height 6280mm. 2 speed crane all motions. Capacity. 5 tonnes SWL, c/w free standing support steelwork. Ref AG349.

	REF AG253. Street 2t SWL wire rope hoist c/w extra long barrel. Street Crane Company hoist type: ZX062-3SoEM5G031-LHR0002-41550E14. 30 meters lifting height, fast lifting speed 7.8mts per minute, and 20/5 mts per minute cross travel. Optional radio remote control £600.00.

Street Cranes UK specifications.

• SWL 3.2 t, 4t and 5 tonnes. 4 in stock.
• Street cranes speeds; 2 TBC
• Beam; meters to underside TBC
• Crane Span; up to 12-14 meters but we can shorten / alter this.
• Overall height; TBA Hoist headroom loss 557mm from wheel to bowl of crane hook.
• Extras: Self supporting steel work, legs and down shop gantry rail for the down shop.
• Includes a remote control or a crane pendant.
• Type ZX34 Hoist 4/1.3m/min (M4)
• Cross travel 20/5m/min (M5)
• Long travel 32/8m/min (M5)
• Contactors in hoist but no pendant unless part of complete crane.
• Trolley set to fit 229mm or 305mm


  CLICK TO SEE THE CRANES ABOVE BUILT UP
