Specifying an overhead crane
Overhead gantry cranes come in many different types and are referred to in many different ways. They can be either single girder with the hoist underneath, or double girder, with the hoist on top or from box beam section rather than I Beam. They may be top running (most common) or underslung from an I-beam, powered (motorised) or even push pull travel.
When ordering or inquiring it will help to know the following - but don't worry if you don't know them:

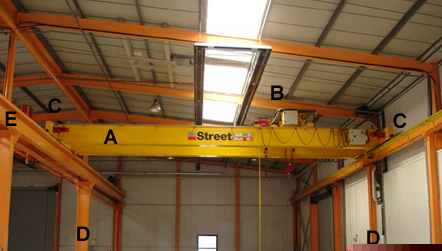

A = The crane bridge.
B = The hoist.
C = The end carriages.
D = The gantry legs. Notice the legs on the left a free standing & thicker.
E = The down-shop gantry rail.
At AG CRANES we sell or service A,B,C,D,and E.
The end carriages "B" and the crane beam "A" can be mounted in various ways to save lifting headroom.
Downshop rail supports, or knee joints.
Below a single girder crane beam with and without a chamfer.
If it is on a crane we can supply, service, install, modify and test it.
The above information will ensure you purchase the correct crane for your specific needs.
