makes available, Donati,
Pelloby, Demag, Niko,
Street, Abus, Stahl and Kone swing jibs.
your inquiry now or call
Chloe "The Jibette" 01527 894 825.
to consider before buying an under brace Swing Jib Crane.
jib cranes have 2 parts a swing arm and a column. We normally
supply them with an electric or manual chain block, usually
with a hand push travel hoist trolley. Service interval is
12 monthly; based on normal usage with one factory shift per
AG Cranes supply an electric chain-hoist with a swing jib
crane we will also dispatch an electrical festoon system including,
festoon cables, festoon cable trolleys, as well as an on/off
AG Cranes Ltd swing jib-cranes are usually underbraced
in style for the best hook headroom available. We also supply
overbraced swing jibs as well.
terms of your electric
chain hoist we can supply your swing jib with either a
Donati, a Demag or a Stahl three phase 415 volt chain hoist,
new or used with a warranty of up to 3 years. You choose.
a swinging jib arm crane.
customers ask about the depth of their factory floor before
an order is placed. The rule of thumb being up to 500kg SWL
is usually ok, but the floor has to be the clients responsibility.
Please check it.
swing jib cranes take between 4 and 8 bolts that we use chemical
resin to secure them to the ground with. As an example a Hilti
M20 bolts requires an embedment depth of 170mm.
A good quality reinforced concrete floor is always preferred,
however if you are unsure we also offer ground anchors or
an extra large base plate.
The extra large base bolts to the ground and the jib column
is then bolted to the base before testing with a 25% overload.
tested and paid for in full we issue a test certificate and
the swing jib will be left with a serial number and a SWL
sticker; E.G. SWL 250kgs, serial number AG216/001.

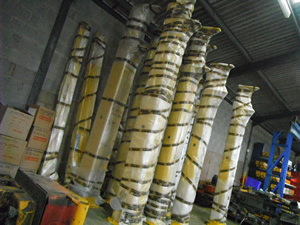

new swing jibs in need of a new home.
more information on buying or servicing call Chloe
on 01527 894 825.
