- SWL

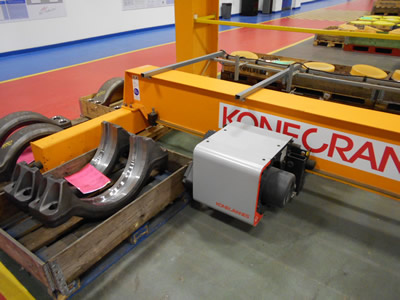

5 tonnes, year 2012 SOLD
- Kone
Cranes speeds hoisting; 8/1.3 meters per minute. Hoist group FEM M5 (2m)
- Cross travel speed Inverter
10 meters maximum step-less.
- Long travel 32 m/min stepless.
- Beam;
single beam design.
- Beam depth 640mm.
- Hoist hook loss 425mm.
- Crane
Span; 9500mm but we can shorten / alter it.
- End carriage length 2382mm including the buffers, to spread the load.
- Overall
height; TBC 5890mm if taken with the gantry (REF AG337-4) below.
- End carriage wheel to top of crane beam. 680mm.
- Includes
a radio remote and a crane pendant.
- Built
in KONECRANES workshop.
- Extras:
Self supporting steel work, legs and down shop gantry rail 23892mm.
- 14 crane columns, 7 per side. Pitches, 3600mm x 4, 3900mm, 4420mm plus 2 small cantilevers, c/w 2 k-bracings.
- Floor to rail height 5210mm
- Hook to floor 4985mm
- Radio
remote or master and slave from one radio if both cranes are used together. (A, B /or both cranes.)
- Anti collision.
- Weighing scales, yes these cranes come with load scales.
- Universal
beam to suit; 12 pieces of 305mm c/w 50 x 50 square bar on top.
